8808A - 5.5 Digit Precision
Multimeter
Versatile multimeter for manufacturing,
development and service applications
- 5.5 디지트의 분해능
- V dc accuracy : 0.01 %
- 듀얼 디스플레이
- 특화된 dc 누설전류 측정
- 4-Wire 성능을 가진 2X4 ohm 기능
- 장비 설정을 빠르게 할 수 있는 6개의 전용 버튼
- Pass/Fail
테스트를 비교할 수 있는 Hi/Lo 임계값 비교
The Fluke 8808A 멀티미터는 V DC정확도가 0.01%로 전압, 저항 및 전류에 대해 넓은 범위의 측정이 가능합니다.
매우 쉽게 사용이 가능하도록 설계되어 사용이 미숙한 사람도 빠르고 쉽게 측정이 가능합니다.
8808A 전면에 위치한 6개의 설정버튼은
자동차 라디오에 프리셋과 같은 역할을 하여 일반적인 측정에 대해 쉽게 설정하여 저장이 가능합니다.
측정하고자 할 때 6개의 설정키중에 필요한 설정버튼을 눌러 바로 측정이 가능합니다.
주요특징
Eliminate production mistakes
The Fluke 8808A 5.5 digit
multimeter dependably performs the most common measurements required by today’s
applications. Whether you are performing functional tests or making critical
measurements on test points, using the limit compare mode with pass/fail
indicators eliminates production mistakes, especially those where results are
“on the edge.” The 8808A display has built-in enunciators that clearly show the
operator whether a test passes or fails. The pass/fail indicators take the
guesswork out of testing: the result is either within limits or it’s out!
Improve quality and efficiency in manufacturing test, R&D or
service applications
Manufacturing test, R&D, development and
service applications demand performance and flexibility from a bench meter.
This Fluke 8808A makes measurements that stand up to any scrutiny. It delivers
a wide variety of measurement functions, including volts, ohms, and amps,
plus frequency—all at superior accuracy and resolution.
Measure two parameters at once
The 8808A features a
unique dual display that allows you to measure two different parameters of the
same signal from one test connection. Looking at dual interrelated parameters
like voltage and current simultaneously can reveal conditions that might go
unnoticed otherwise, greatly simplifying test and troubleshooting.
Measure sensitive leakage current
Typical multimeters use
a shunt method to measure current, creating a measurement burden voltage that
increases the error in low current measurements. This makes it difficult, if
not impossible, to perform tasks such as determining the true leakage current
on a battery-powered device while it is powered down, or measuring small
currents in sensitive circuits. The Fluke 8808A is the only multimeter in its
class to use a low-impedance operational amplifier and current-to-voltage
conversion technique to eliminate the burden voltage and measure sensitive low
currents. In this special mode, the 8808A can accurately measure small
currents with a resolution of up to 100 nA.
Perform 4-wire measurements with only two leads
Patented
split terminal jacks for the 2x4-wire ohms function allow you to perform 4-wire
measurements using only two leads instead of four. Today’s surface mount
components make it difficult to make connections. The task becomes even more
difficult when you need to use a 4-wire technique for accurate low ohms
measurements. The Fluke test lead accessory combines the four wires into two
test lead pairs, making it easy for you to establish connections. You get
excellent resolution and accuracy, plus the convenience and ease of using a
single pair of leads.
FlukeView? Forms Basic
FlukeView Forms increases the
power of your Fluke tool by enabling you to document, store and analyze
individual readings or series of measurements, then convert them into
professional looking documents. Transfer data points from your meter to your PC
and use the standard, non-customizable forms to display your readings in table
or graphical form. For a larger array of forms or to use FlukeView? Forms
Designer customize your forms, upgrade to FlukeView? Forms 3.0 with FVF-UG.
Fluke quality is built in
Fluke is known around the world
for its rugged, reliable, and accurate multimeters. With our experience,
design standards and quality assurance processes, we have designed a
multimeter that will stand up to any scrutiny of its specifications. In fact,
a Fluke meter typically performs better than specified. All of our efforts
are designed to ensure that you can make an accurate measurement— repeatedly,
and with confidence.

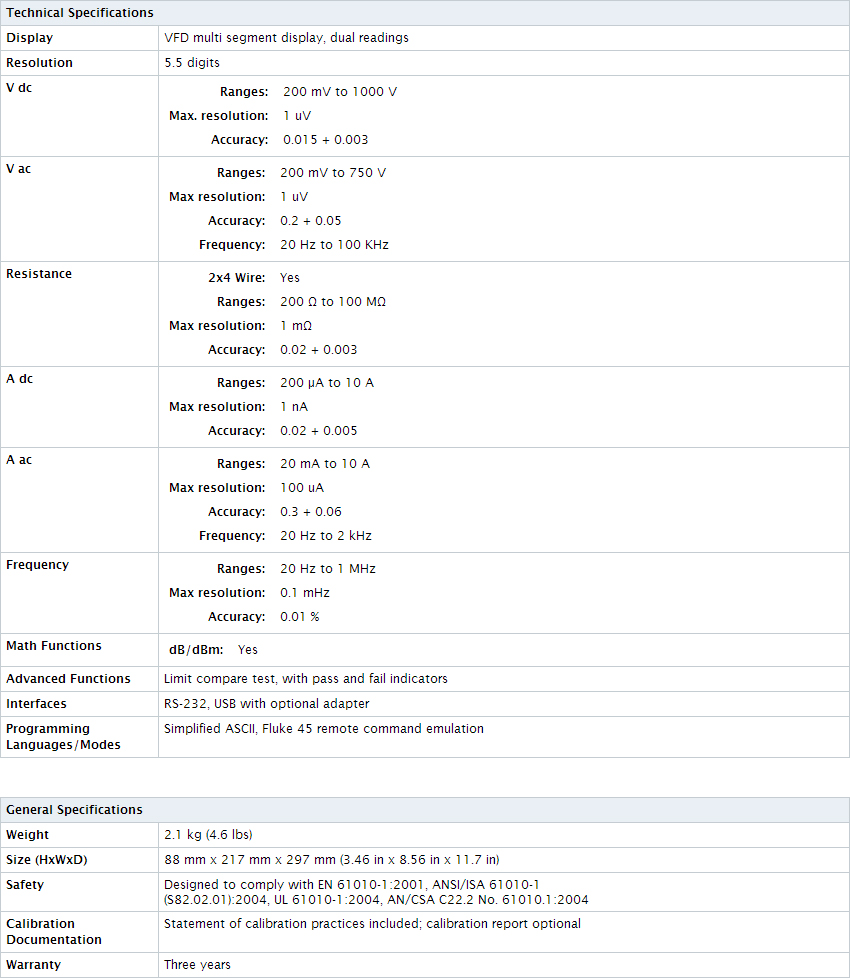

Technical specifications
