VICTOR 4000 Double Clamp Digital Phase Meter
상세설명 (Description)

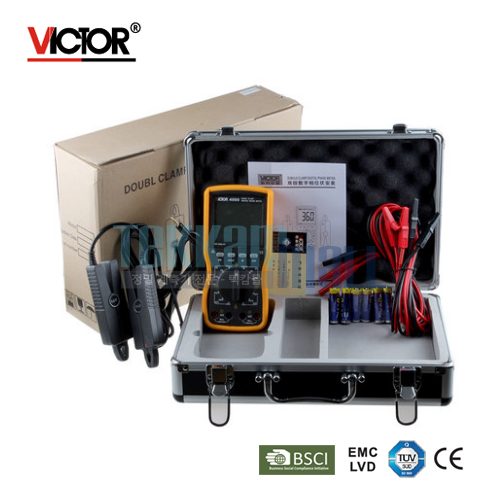

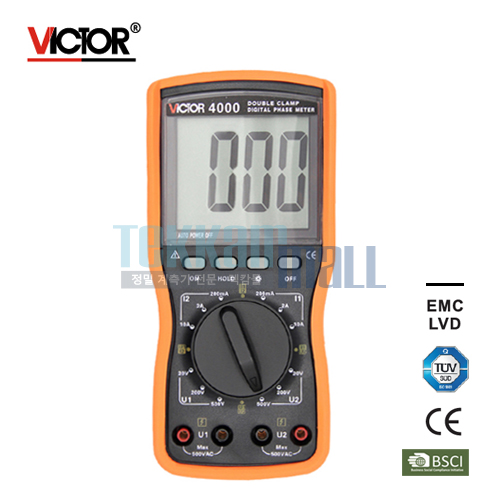

The VICTOR4000 Double Clamp Digital Phase Meter is a well-developed multi-functional meter specifically designed for field testing, featuring high accuracy, high stability, low power consumption, easiness to use and so on.
It can directly measure AC voltage and AC current opening the measured circuit, phases between two voltages, two currents and phase between the voltage and current; in addition, the power factor and power of the circuit can be indirectly measured, it can also be used to distinguish three-phase sequence, transformer wiring group, inductive and capacitive circuits, test second circuit and bus differential protection systems, read the phase relationship between CTs of the differential protection, check the meter wiring right, repair lines and equipment, etc.

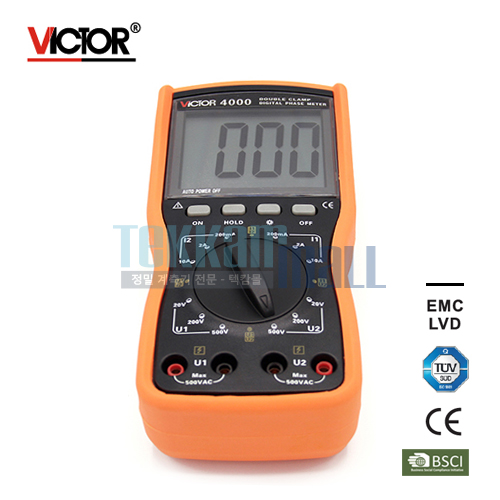

The VICTOR4000 Double Clamp Digital Phase Meter has a large LCD screen displaying words as high as 40mm against a backlight, and looks exquisite and comfortable.
The VICTOR4000 Double Clamp Digital Phase Meter applies to electric power, petroleum chemical industry, metallurgy, railway, and meteorology, industrial and mining enterprises, scientific research institutions, measurement sector and so on.
Technical specifications
* error and performance indicators under base conditions | |||
Function | Measurement Range | Resolution | Intrinsic Error |
---|---|---|---|
AC voltage |
20V | 0.01V | ±(1.2%rdg+2dgt) |
200V | 0.1V | ||
500V | 1V | ||
Current | 200mA | 0.1mA | ±(1.0%rdg+2dgt) |
2A | 1mA | ||
10A | 10mA | ||
Phase | 0~360° | 1° | ±3° |
* Base Conditions and Working Conditions | |||
Influence Quantity | Base Condition | Working Conditions | Remark |
---|---|---|---|
Ambient Temp | 23℃±1℃ | -10℃~40℃ | |
Ambient Humidity | 40%~60% | <80% | |
Signal Waveform | sine wave | sine wave | β=0.05 |
Signal Frequency | 50HZ±1HZ | 45HZ~65HZ | |
Meter Working Volt | 9V±0.1V | 9V±1V | |
External Electric, Magnetic Field | To be avoided | ||
Measured Wire Position | Measured wire at approximately the geometric center of the clamp |
* General Specification | |
Function | Phase, AC current, AC voltage, AC leakage current, direct test of phase sequence; transformer groups, inductive, capacitive circuit discrimination; indirect test of power factor and power |
---|---|
Power | DC9V alkaline batteries(1.5V AA×6) |
Consumption | About 35mA at most with enabled backlight, battery working continuously for about 40 hours |
About 5mA with disabled backlight, battery working continuously for about 300 hours | |
Display Mode | LCD display, backlight, suitable for dark places |
LCD Size | 70mm×62mm |
LCD Display Field | 64mm×54mm |
Meter Size | Length, Width, Height:196mm×92mm×54mm |
Clamp Size | φ7.5mm×13mm |
Sampling Rate | About 3 times/second |
Measurement Range | AC Voltage:0~20V/200V/500V |
AC Current:0~200mA/2A/10A | |
Phase:0~360° | |
Measured Signal Amplitude in Phase Test | U1-U2 phase test:30V~500V |
I1-I2 phase test:10mA~10.00A | |
U1-I2 or I1-U2 phase test:10V~500V、10mA~10.00A | |
Data Hold | Press HOLD key to keep data, "DH" symbol appears |
Automatic Shutdown | Automatic shutdown about 15 minutes later after launching to reduce battery consumption |
Voltage Detection | Low battery symbol “ - , +" appears to remind the replacement of battery when the battery voltage drops below 7.8V~8V. |
Weight | Main Unit about 550g(with battery),clamp about 170g×2,test line about 250g |
Test Line Length | 1.5m |
Current Clamp Length | 2m |
Working Temperature and Humidity | -10℃~40℃; below 80%Rh |
Storage Temperature and Humidity | -10℃~60℃; below 70%Rh |
Input Impedance | Input impedance for all test voltage range:2MΩ |
Input impedance when testing U1U2 phase:40KΩ | |
Withstand Voltage | Withstand 1000V/50Hz sine wave AC voltage for 1 minute between the meter lines and shell; Withstand 500V/50Hz AC voltage sine wave for 1 minute between the two voltage inputs |
Insulation | ≥10MΩ between meter lines and shell or between the two voltage inputs |
Structure | Double insulation |
