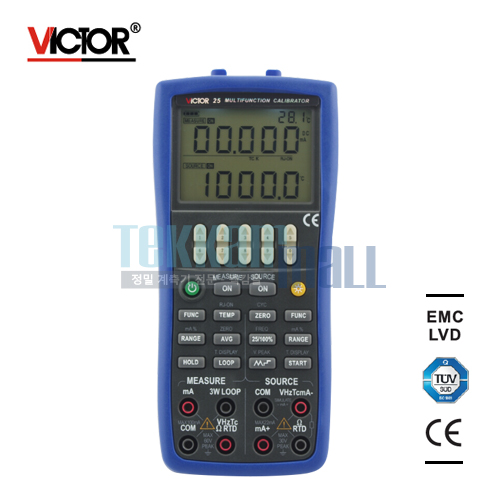

[VICTOR 25] 멀티 프로세스 캘리브레이터 / Multi-function process calibrator
VICTOR 25 Multi-function process calibrator
주요특징 (Features)
• DC 전압, 전류 50mA, 최대 5.5000K 옴, 주파수 10KHz,
• 열전쌍 유형 : R, S, K, E, J, T, N 및 B;
• PT100, PT1000 및 우리의 RTD 센서
• 스위치, 연속성 테스트 및 변환기 모듈에 의한 압력
• 정확도 : ± 0.02 %
상세설명 (Description)
VICTOR 25 provides powerful measure, almost all of the output process parameters and calibration.
Measurement and output of the basic accuracy of 0.02%, the measurement is displayed as 5, the output for the six.
Measurement functions : DC voltage, DC current, ohms, frequency, thermocouple, RTD, digital display of measured values to maintain and measure the average processing, the internal power supply providing 24V loop.
Output : DC voltage, DC current, ohms, analog transmitters, thermocouple, RTD, frequency, pulse, switch, pressure, internal power supply providing 24V loop.
Measurement and output as two independent channels allow simultaneous real-time measurement and output process signals; multiple data, the measured value can be displayed simultaneously and set output settings.
The internal 24 V loop power supply provides power to the transmitter, and simultaneous mA measurement.
Can be wire, 3-wire ohm and thermal resistance measurement.
Rapid response switch test allows you to capture the process parameters when switching.
The DC current output, it can provide 25% and 100% of the manual step, automatic step and auto ramp function output.
Can be equipped with pressure range of 32 different pressure modules, the pressure range from 2.49KPa to 70MPa, 5-digit display pressure measurement.
Technical specifications
Source | ||
DC millivolt | Range | -10 ~ 110mV |
---|---|---|
Accuracy= ±(% of the set value+% of range) | 0.02%+0.01% | |
Resolution | 1uV | |
DC voltage | Range | -1 ~ 11V |
Accuracy= ±(% of the set value+% of range) | 0.02%+0.01% | |
Resolution | 10uV/0.1mV | |
DC current | Range | 0 ~ 22mA |
Accuracy= ±(% of the set value+% of range) | 0.02%+0.02% | |
Resolution | 1uA | |
Sink current | Range | 0 ~ 22mA |
Accuracy= ±(% of the set value+% of range) | 0.02%+0.02% | |
Resolution | 1uA | |
External power supply |
5 ~ 28V | |
Resistance | Range | 0 ~40KΩ |
Accuracy= ±(% of the set value+% of range) | 0.02%+0.02% | |
Resolution | 0.01Ω/0.1Ω/1Ω | |
Thermocouple | Range | R/S/K/E/J/T/B/N |
Accuracy | 0.4℃ | |
Resolution | 0.1℃/1℃ | |
RTD | Range | Pt100/Pt200/Pt500/ Pt1000/Cu10/Cu50 |
Accuracy | 0.2℃ | |
Resolution | 0.1℃ | |
Frequency | Range | 1Hz ~110KHz |
Accuracy | ±2words | |
Resolution | 0.01Hz/1Hz/0.1KHz/2KHz | |
Pulse | Frequency | 1Hz ~10KHz |
Range | 1 ~100000cyc | |
Accuracy | ±2words | |
Resolution | 1cyc | |
Switch | Range | 1Hz ~110KHz |
Accuracy | ±2words | |
Resolution | 0.01Hz/1Hz/0.1KHz/2KHz | |
Pressure | Range | Depends on the pressure module |
Accuracy= ±(% of the set value+% of range) | Depends on the pressure module | |
Resolution | 5 digit display | |
Measure | ||
DC millivolt | Range | -5 ~ 550mV |
Accuracy= ±( % of Reading+ % of Range) | 0.02%+0.01% | |
Resolution | 1uV/10uV | |
DC voltage | Range | -0.5 ~ 55V |
Accuracy= ±( % of Reading+ % of Range) | 0.02%+0.01% | |
Resolution | 0.1mV/1mV | |
DC current | Range | -5 ~ 55mA |
Accuracy= ±( % of Reading+ % of Range) | 0.02%+0.01% | |
Resolution | 1uA | |
Resistance | Range | 0 ~5.5KΩ |
Accuracy= ±( % of Reading+ % of Range) | 0.05%+0.02% | |
Resolution | 0.01Ω/0.1Ω | |
Thermocouple | Range | R/S/K/E/J/T/B/N |
Accuracy | 0.7℃ | |
Resolution | 0.1℃/1℃ | |
RTD | Range | Pt100/Pt200/Pt500/ Pt1000/Cu10/Cu50 |
Accuracy | 0.4℃ | |
Resolution | 0.1℃ | |
Frequency | Range | 3 Hz~50KHz |
Accuracy | ±2words | |
Resolution | 0.01Hz/0.1Hz/1Hz | |
Switch | Range | CLOSE/OPEN |
Threshold | 200 ~300Ω | |
Pressure | Range | Depends on the pressure module |
Accuracy= ±( % of Reading+ % of Range) | Depends on the pressure module | |
Resolution | 5 digit display | |
Continuity beeper | Range | 0 ~500Ω |
Accuracy | ≤50Ωsound | |
Resolution | 0.01Ω | |
Loop power supply | Range | 24V |
Accuracy | ±10% | |
The maximum current | 22mA | |
Other functions | ||
Backlight | √ | |
Auto Power-off | √ | |
Charging function | √ | |
Room temperature display | √ | |
Battery detection | √ | |
The ramp signal | √ | |
Communication function | RS232 serial communication, can realize remote control instrument by the device driver software. | |
Characteristic | ||
Safety | EN61010-1:2001 | |
Withstand voltage | The input and output AC350V/1 minutes | |
Insulation | The input and output DC500V /50MΩ. | |
EMC | EN61326-1:2006 | |
Authentication | CE | |
Display | Double display on the LCD screen | |
Power supply | 4×1.5V AAA Alkaline battery | |
Size | 205 × 95 × 42 mm | |
Weight | About 500g | |
Standard Quantity Per Carton | 10pcs | |
Standard Carton Measurement | 395mm*385mm*260mm | |
Standard Carton Cross Weight | 12.4Kg |
* Note : table range for the maximum range, precision is the highest accuracy (reading%), the resolution is the highest resolution.
